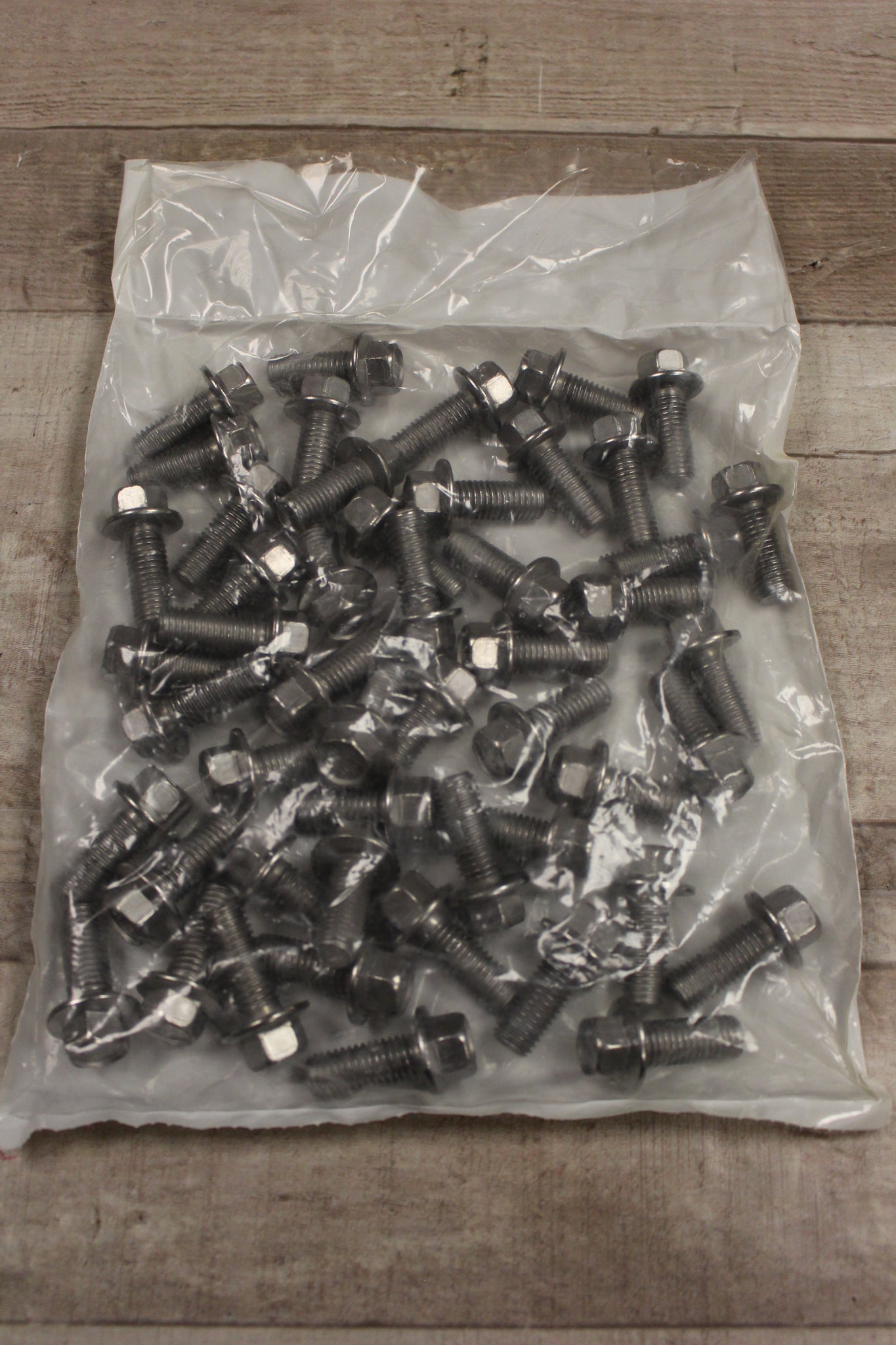

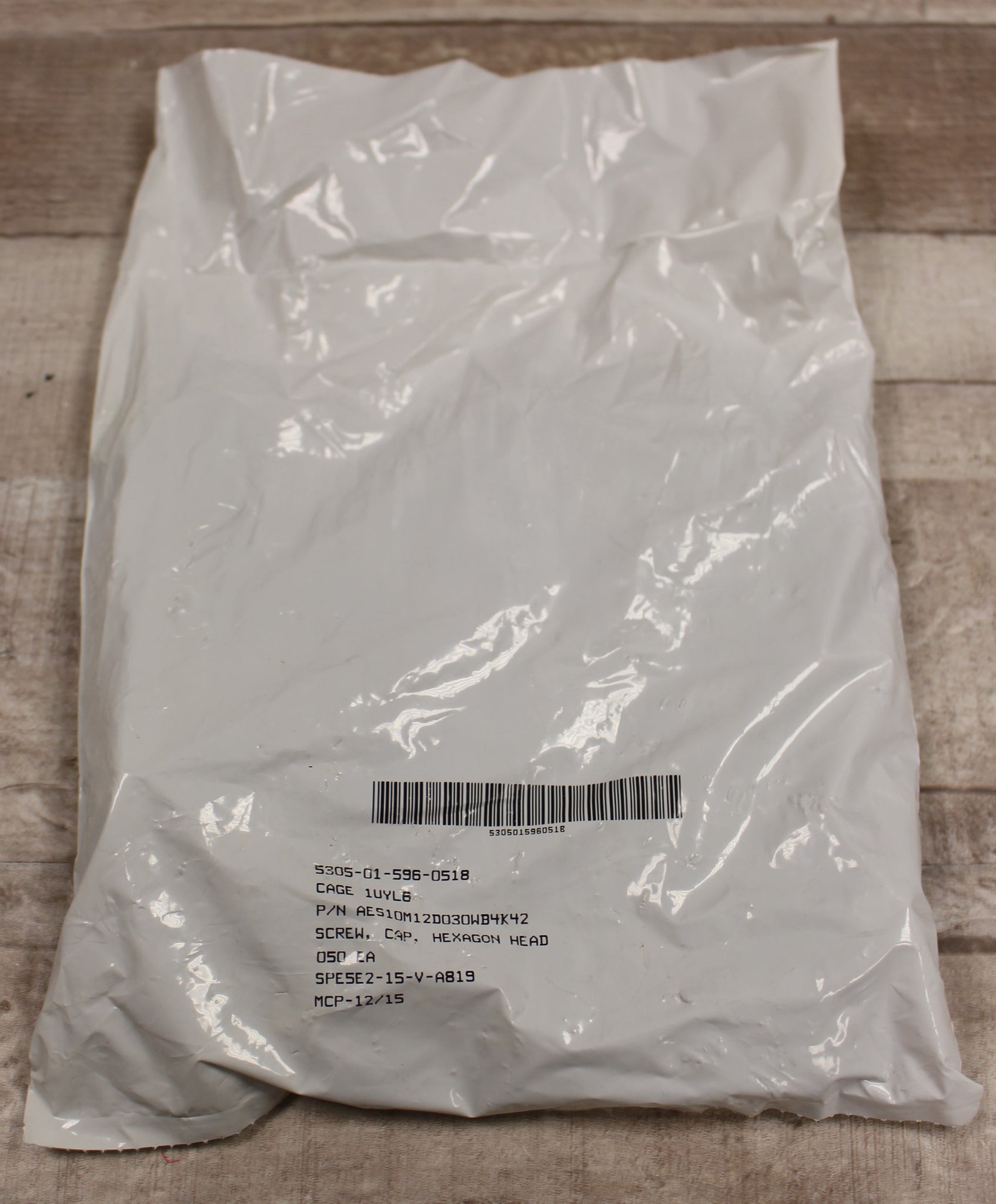

Set of 50 Hexagon Head Cap Screws
NSN: 5305-01-596-0518
Part: AES10M12D030WB4K42
Thread Direction: Right-hand
Thread Length: 24.7 millimeters nominal
Fastener Length: 30.0 millimeters nominal
Head Style: Hexagon extended washer
Head Height: 13.7 millimeters nominal
Width Between Flats: 14.7 millimeters minimum and 15.0 millimeters maximum
Extended Washer Diameter: 23.3 millimeters minimum and 24.8 millimeters maximum
Extended Washer Thickness: 1.8 millimeters nominal
End Item Identification: 6115-01-561-7788 generator set, diesel engine
Nominal Thread Diameter: 12.0 millimeters
Thread Pitch in Millimeters: 1.8
External Thread Tolerance Class: 6H
Part Name Assigned BY Controlling Agency: Screw, hexagon, flange
Material: Steel property class 8.8 overall
Surface Treatment: Zinc overall
New
