Loop Clamp, NSN 5340-00-079-7837, 4116200-456, MS21333-67, 5340PL0826396

Raytheon Company

$ 2.00

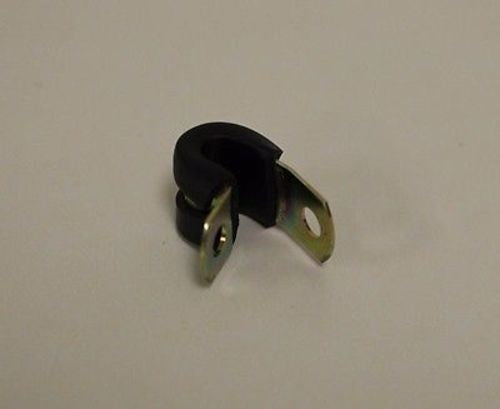

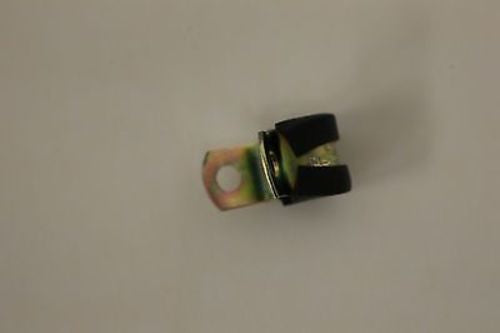

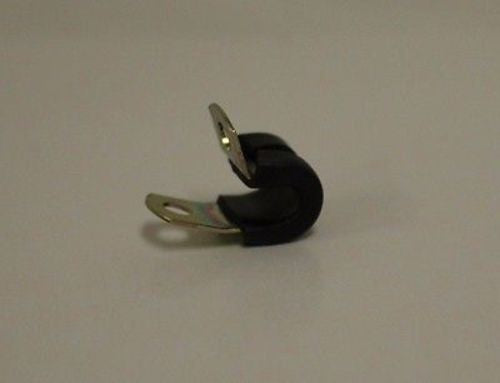

Loop Clamp

NSN: 5340-00-079-7837

Part Numbers: 4116200-456, MS21333-67, 5340PL0826396

Distance from loop center to tongue end - 0.750 inches nominal

Center to center distance between loop and mounting hole - 0.531 inches nominal

Diameter - 0.203 inches nominal

Overall width - 0.500 inches nominal

Loop inside diameter - 0.250 inches nominal

Material Thickness - 0.032 inches nominal

Style Designator - Single loop

Tongue hole type - Round, unthreaded

Condition: New
