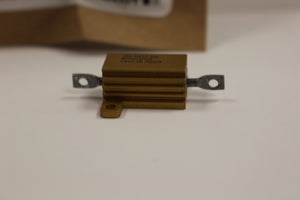

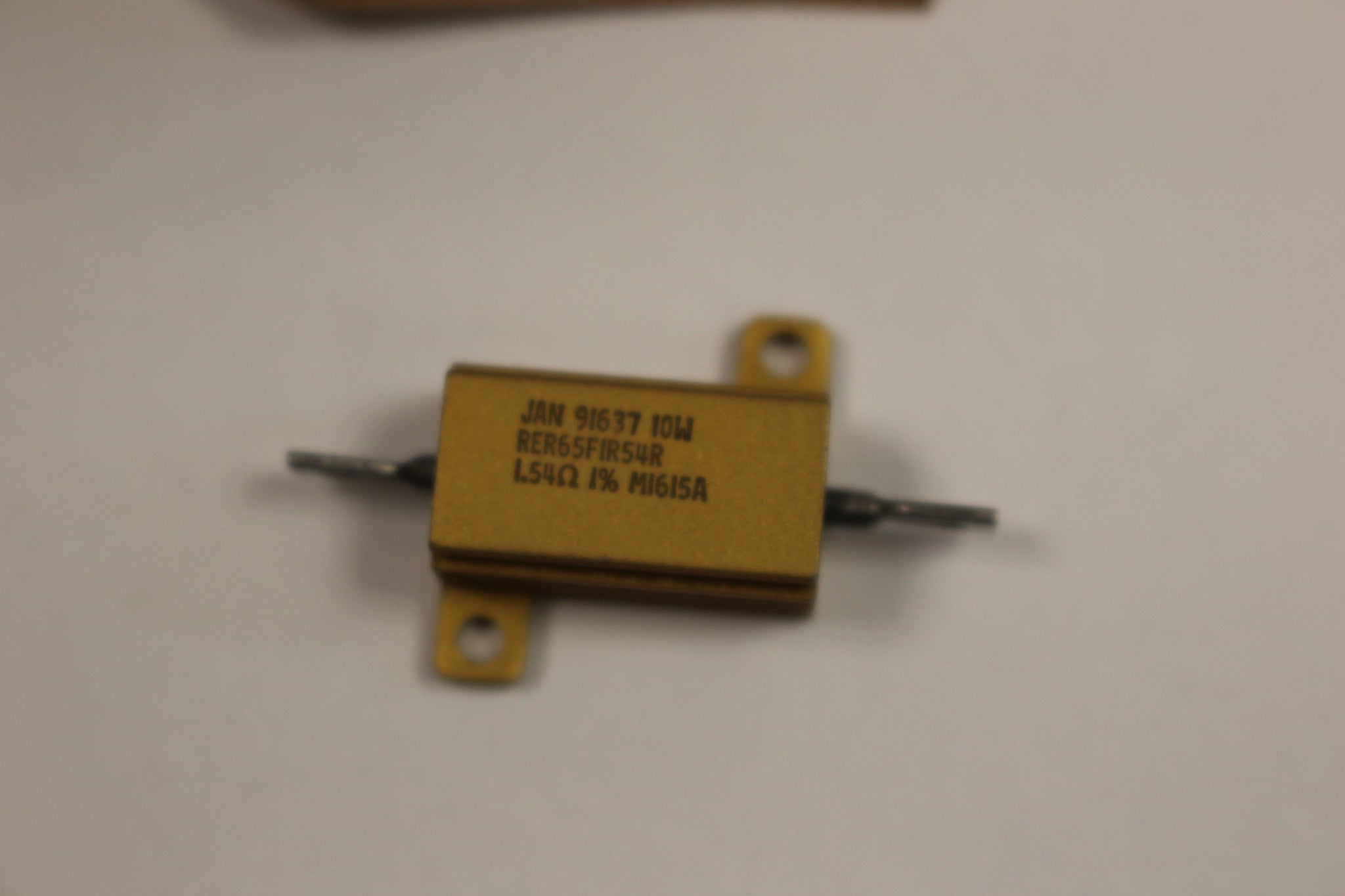

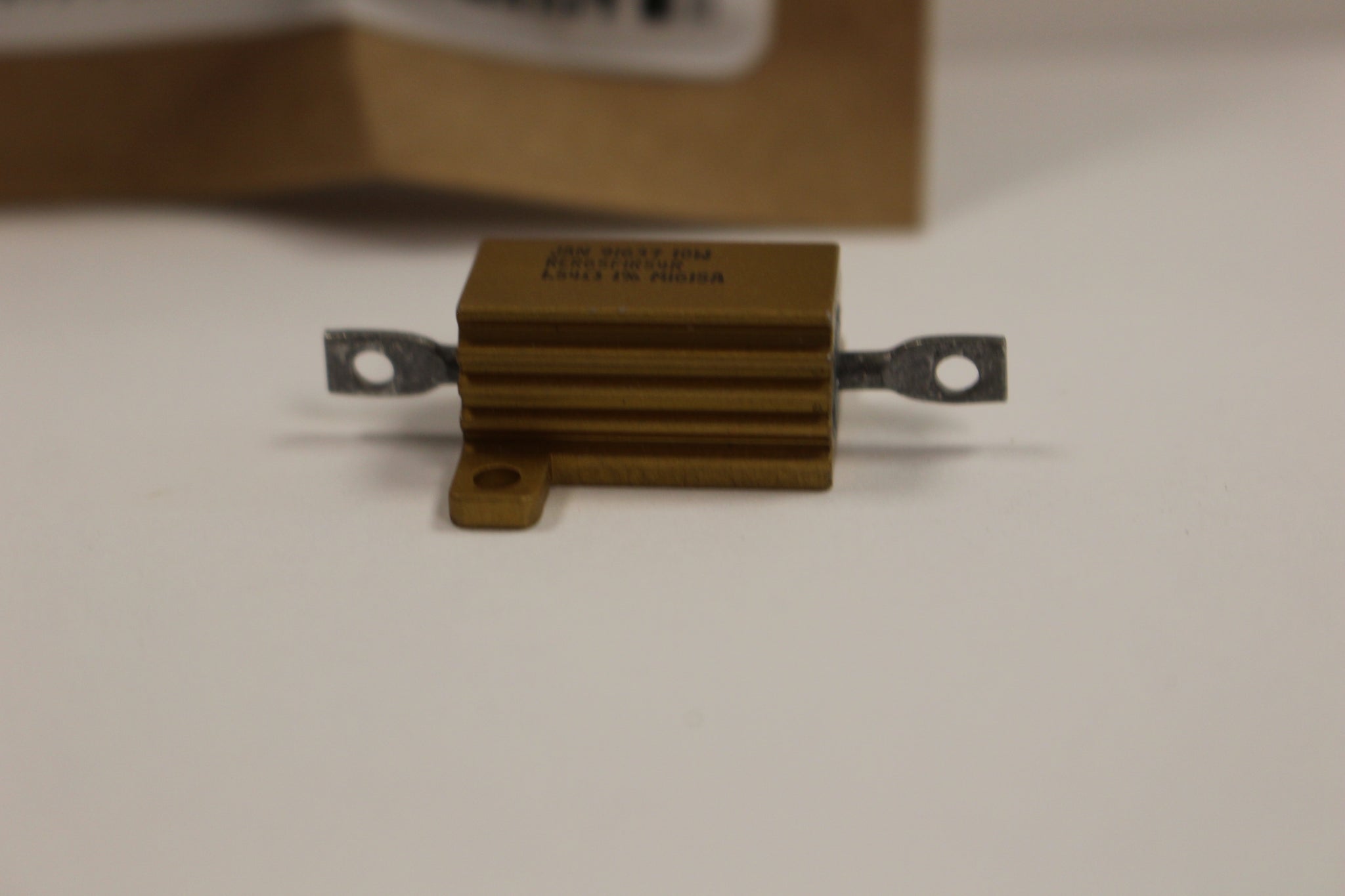

Inductive Wire Wound Fixed Resistor / Fuse Resistor
NSN: 5905-01-100-6543
Part Numbers: MIL-PRF-39009/1, MIL-R-39009/1, RER65F1R54P, RER65F1R54R
Temperature Coefficient Of Resistance In Ppm Per Deg Celsius: -50.0/+50.0
Electrical Resistance: 1.540 ohms
Resistance Tolerance In Percent: -1.000/+1.000
Ambient Temperature In Deg Celsius At Full Rated Power: 25.0
Ambient Temperature In Deg Celsius At Zero Percent Rated Power: 275.0
Temperature Range Of Temperature Coefficient In Deg Celsius: -55.0/+275.0
Inclosure Method: Encased
Terminal Type: Tab, solder lug
Reliability Indicator: Not established
Reliability Failure Rate Level In Percent: 0.010
Terminal Length: 0.312 inches
Body Length: 0.750 inches
Body Width: 0.438 inches
Body Height: 0.406 inches
Distance Between Centerlines Of Mounting Facilities Parallel To Body Length:
0.562 inches
Power Dissipation Rating In Watts: 6.000 free air
Terminal Width: 0.140 inches
Mounting Hole Size: 0.094 inches
Style Designator: Axial terminal (s)
Condition: New
