Fuse, Cartridge, NSN 5920-00-010-6650, P/N F02A250V3A, NEW!

Military Specifications

$ 2.00

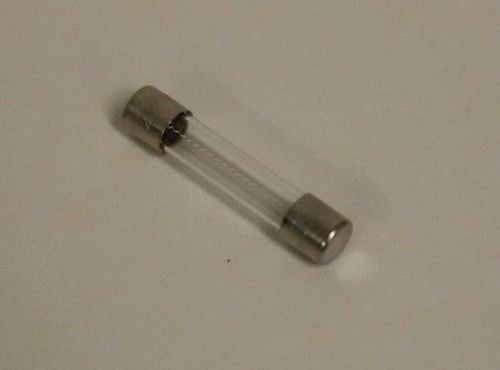

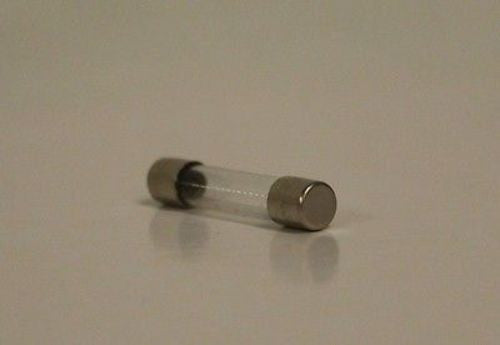

Fuse, Cartridge

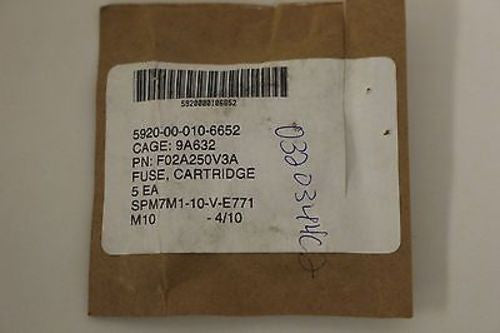

NSN: 5920-00-010-6650

P/N: F02A250V3A

5 in a package

Condition: NEW!

Body style - Tube type
Case material - Glass
Circuit over-current interruption type - Normal instantaneous
Continuous current rating in amps - 3.000
Features provided - Nonrenewable fusible element
Interruption indicator method - Visible element
Overall diameter - 0.246 inches minimum and 0.254 inches maximum
Overall length - 1.219 inches minimum and 1.281 inches maximum
Maximum voltage rating in volts - 250.0 ac and 250.0 dc
Short-circuit/interrupt current rating in amps - 10000.0
Terminal material - Brass
Terminal surface treatment - Nickel or nickel plated
