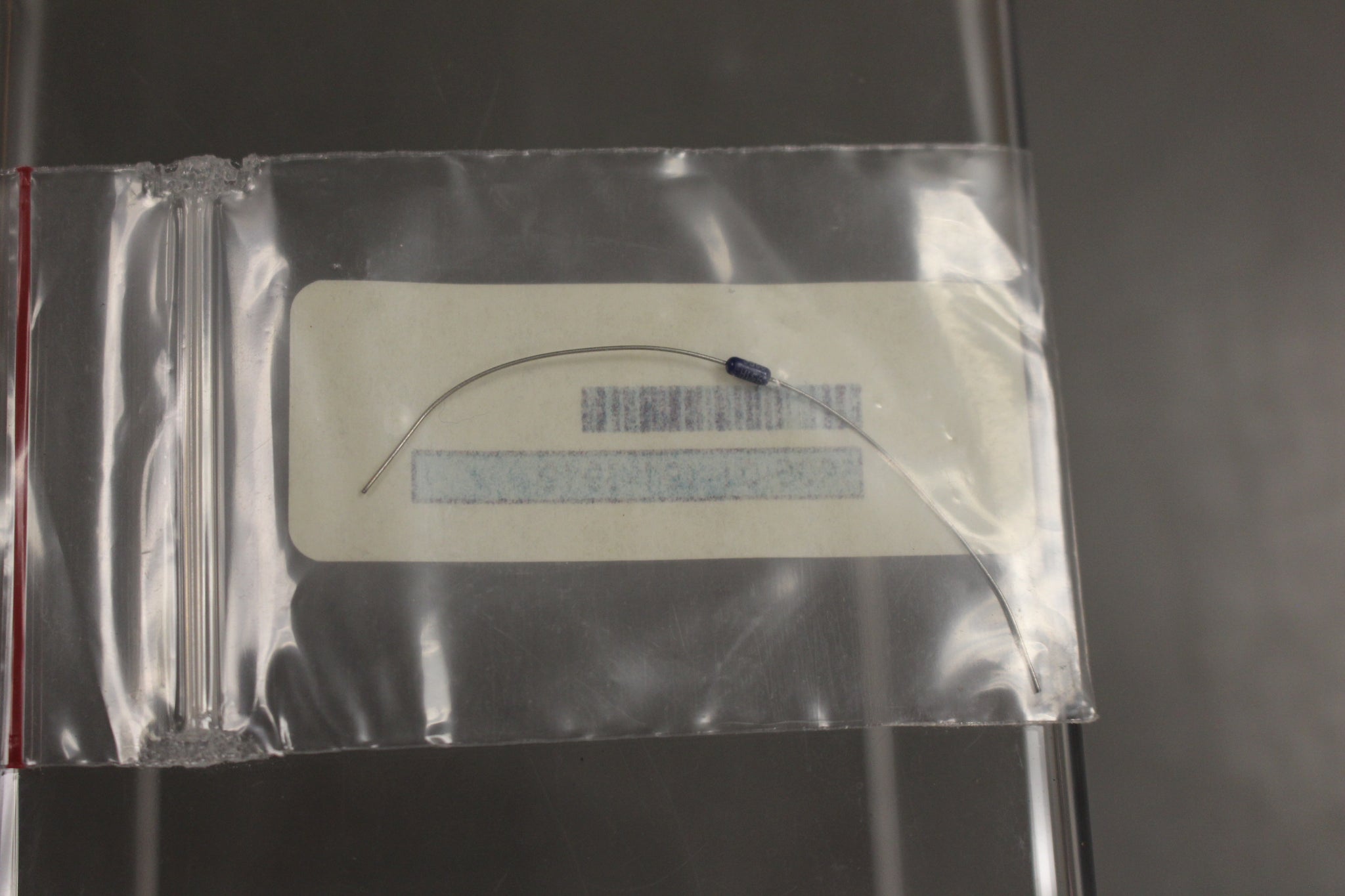

Film Fixed Resistor

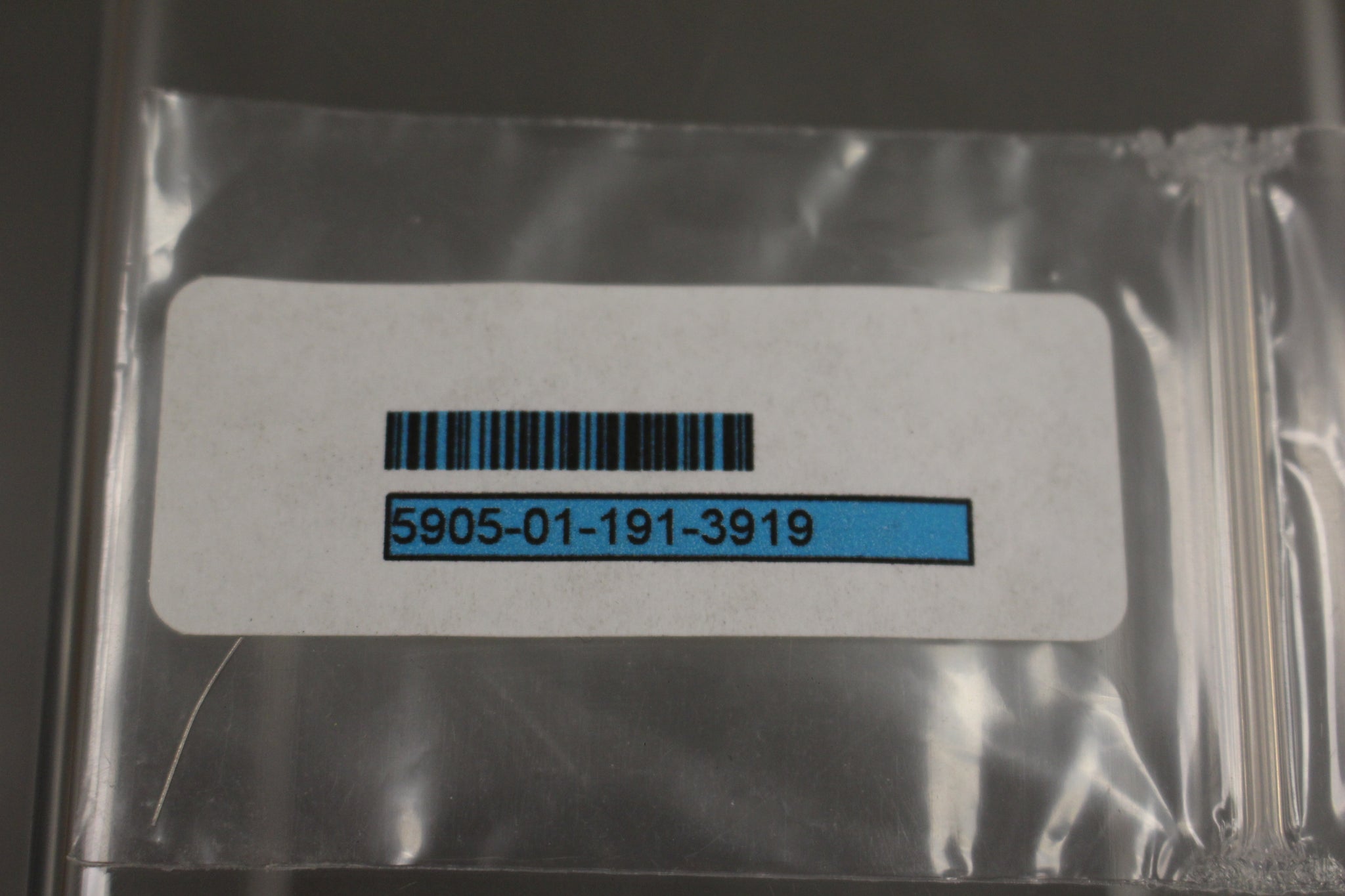

NSN: 5905-01-191-3919
Part Numbers: 023-000922-020,
Condition: New. May not be in original packaging.
Temperature Coefficient Of Resistance In Ppm Per Deg Celsius: -50.0 to 50.0
Electrical Resistance: 39.200 ohms
Resistance Tolerance In Percent: -1.000 to 1.000
Ambient Temperature In Deg Celsius At Full Rated Power: 125.0
Ambient Temperature In Deg Celsius At Zero Percent Rated Power: 175.0
Temperature Range Of Temperature Coefficient In Deg Celsius: -55.0 to 175.0
Inclosure Method: Encapsulated
Terminal Type: Wire lead
Mil-std-1276 Wire Lead Type Designator: C
Reliability Indicator: Established
Reliability Failure Rate Level In Percent: 0.001
Terminal Length: 1.250 inches
Body Diameter: 0.065 inches
Body Length: 0.150 inches
Power Dissipation Rating In Watts: 0.050 free air
Unpackaged Unit Weight: 0.110 grams
Style Designator: Axial terminal each end
