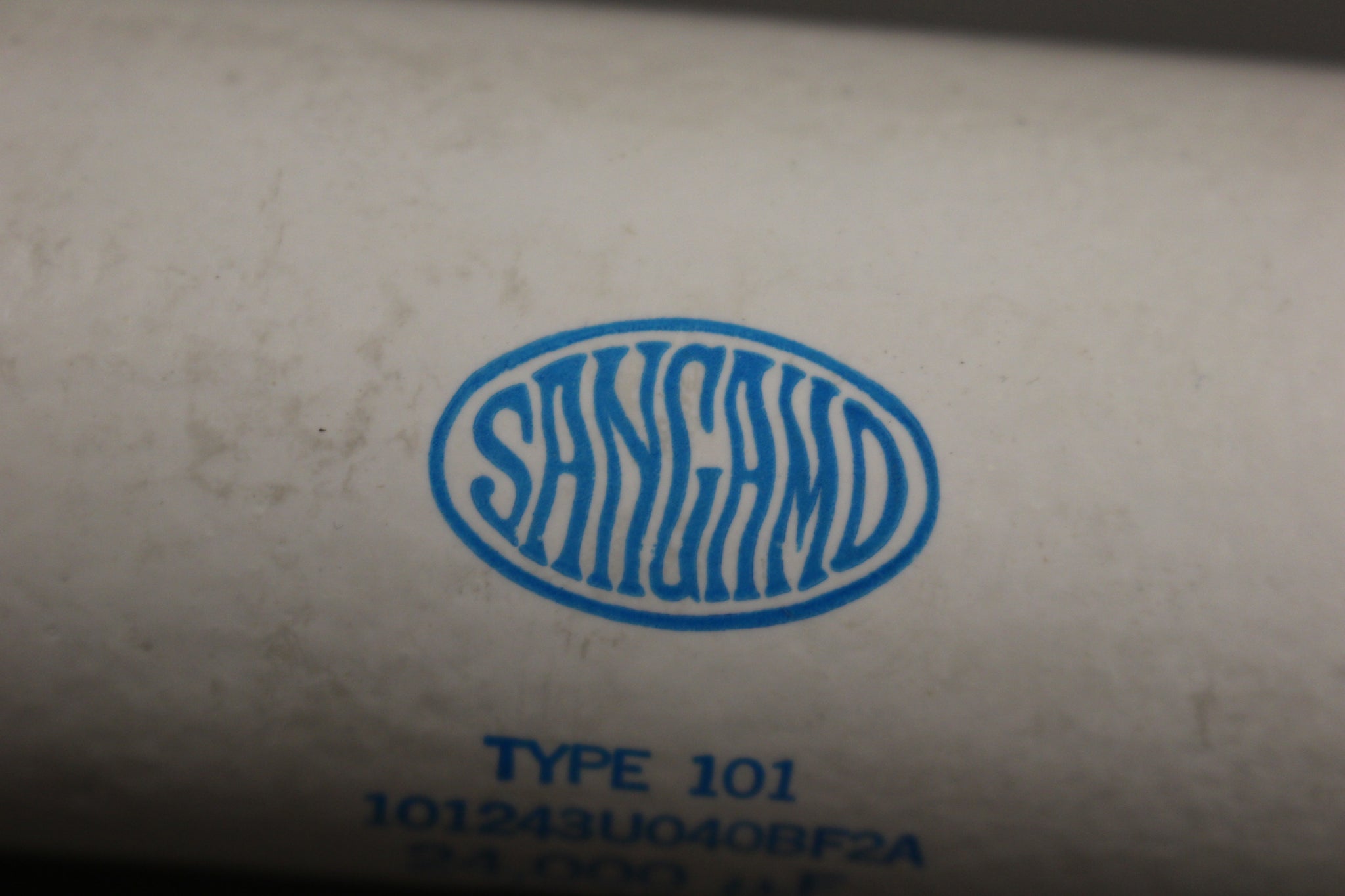

Electrolytic Fixed Capacitor

Part Numbers: 101243U040BF2A, 77C717442P011, CGR243U040V513PL, 101-1573-02, 77C717442P11
NSN: 5910-01-156-7075
Condition: New but not in original packaging.

Body Style: W/O mtg facilities, terminal(s) on one end
Reliability Indicator: Not established
Terminal Length: 0.281 inches NOMINAL
Body Diameter: 2.032 inches nominal
Body Length: 5.657 inches nominal
Center to Center Distance Between Terminals Parallel to Diameter: 0.875 inches nominal
Terminal Diameter: 0.190 inches nominal
Schematic Diagram Designator: No common or grounded electrode(s)
Electrical Polarization: Polarized
End Item Identification: 5840-01-141-4378 radar set AN/TPS-59
Capacitance Value per Section: 24000.000 microfarads single section
Nonderated Operating Temp: -55.0 deg celsius minimum and 105.0 deg celsius maximum
DC Leakage at Maximum Operating Temp: 8820.0 microamperes
Nonderated Continuous Voltage Rating and Type per Section: 40.0 dc single section
Tolerance Range per Section: -10.00/+75.00 percent single section
Case Material: Metal
Capacitive Electrode Material: Aluminum
Equivalent Series Resistance at Reference Temp in Ohms: 0.0077
DC Leakage at Reference Temp: 1470.000 microamperes
Case Insulation Material: Plastic
Terminal Type and Quantity: 2 threaded hole
