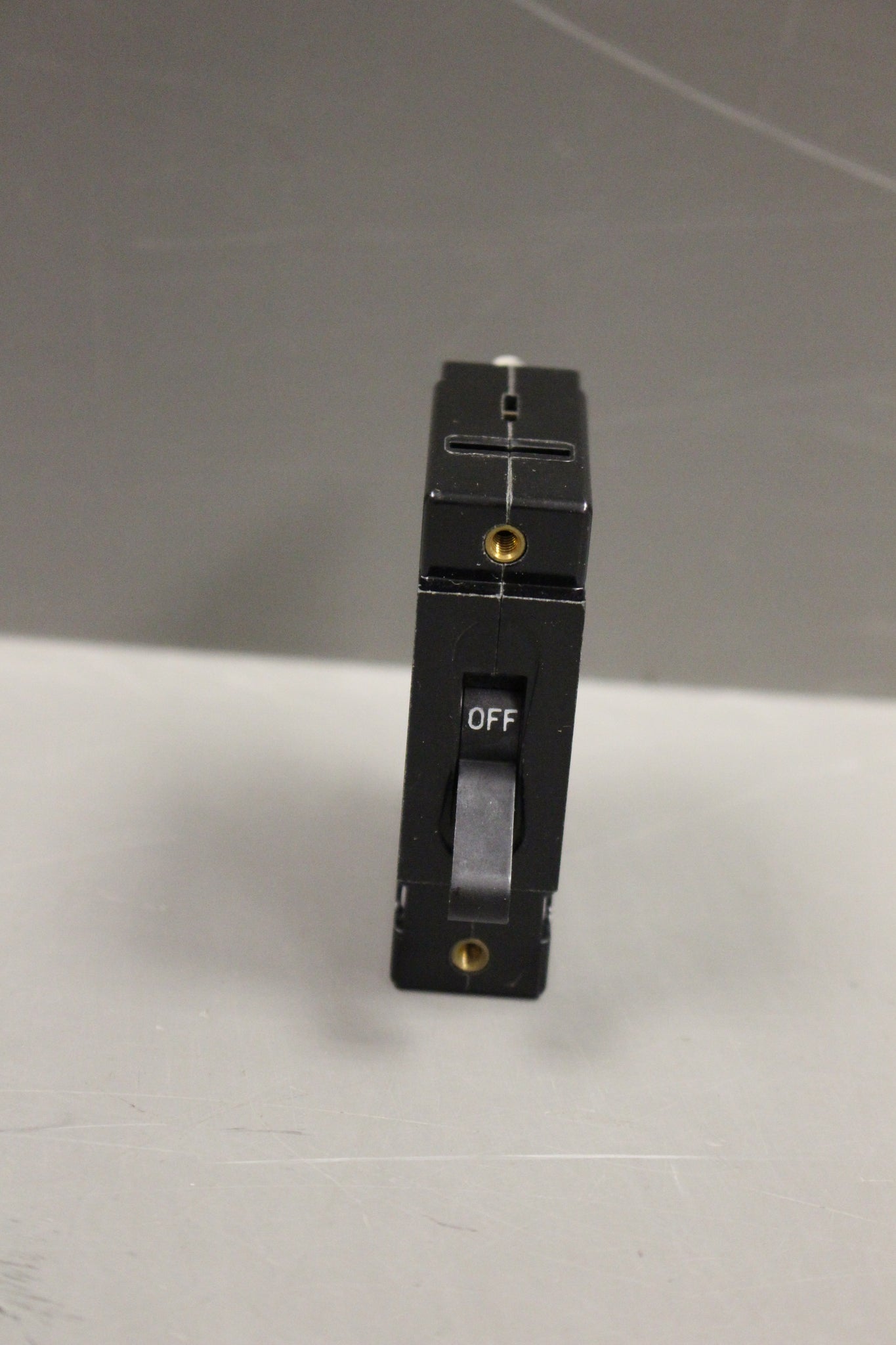

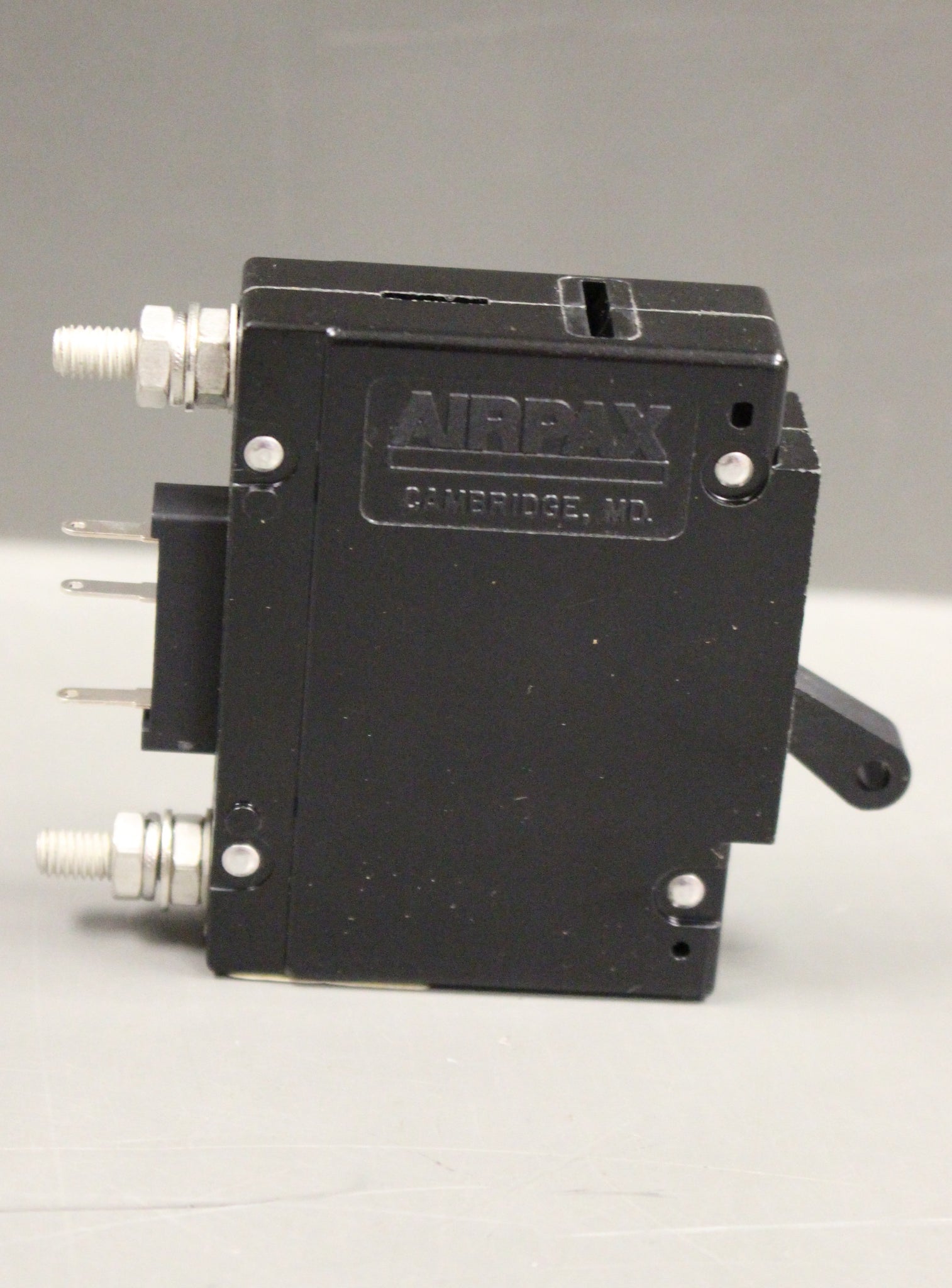

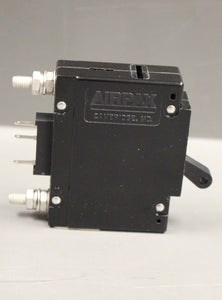

Circuit Breaker / Overload Switch

NSN: 5925-00-107-4234

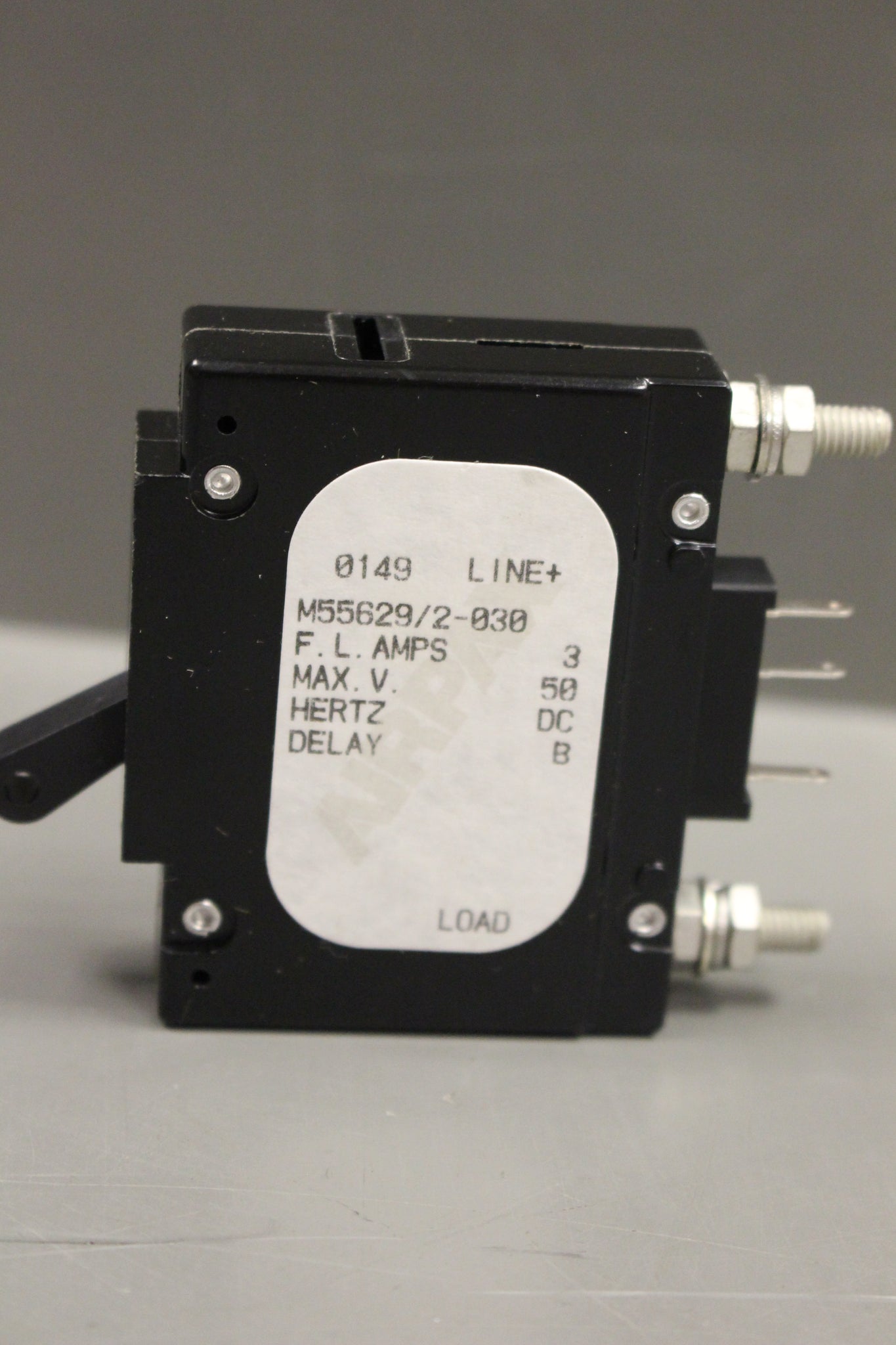

Part Numbers: M55629/2-030, AM1-Z24-030, AM12HKMG6, AM12HKMG6-3-50VDC5, 102886, 47A530118P12 , MIL-C-55629/2, GC885M3, APL-1-1R0-51-302-M
Condition: New

Thread Pitch Diameters: +0.1177 to 0.1214 inches
Body Length: 2.510 inches
Body Width: Between 0.730 inches and 0.780 inches
Case Material: Plastic
Center To Center Distance Between Terminals Parallel To Length: Between 1.660 inches and 1.960 inches
Distance Between Center Lines Of Mounting Facilities Parallel To Body Length: Between 2.046 inches and 2.078 inches
Switch Contact Arrangement: Single pole, double throw
Fragility Factor: Moderately rugged
Boss Height: Between 0.109 inches and 0.171 inches
Mounting Surface To Terminal End Distance: 2.800 inches
Pole Quantity: 1
Arc Quenching Method: Magnetic blowout
Mounting Facility Type And Quantity: 2 threaded hole
Storage Type: General purpose warehouse
Special Handling Feature: Magnetic
Thready Qty Per Inch (tpi): 32
Maximum Continuous Load Current Rating Per Pole: 3.0 amperes dc single location
Operating Voltage Type And Rating Per Pole In Volts: 50.0 dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 2000.0 dc single location
Circuit Protection Type: Overcurrent single location
Trip Release Method: Magnetic single location
Trip Release Characteristic: Time delay single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 125.0 single location
Reset Method: Manual
Main Contact Tripping Mechanism Type: Trip free
Manual Actuator Type And Quantity: 1 toggle
Actuator Function: Trip-reset
Actuator Position Designation: At pole one
Auxiliary Switch Function And Quantity: 1 alarm
Internal Trip Release Configuration: Series trip single location
Thread Size: 0.138 inches
Switch Location And Position Designation: Internal at pole one
Trip Delay Time In Seconds Per Rated Continuous Current: 0.125 at 200 pct single location and 1.500 at 200 pct single location
Inclosure Protection Type For Which Designed: Shock resistant and vibration resistant

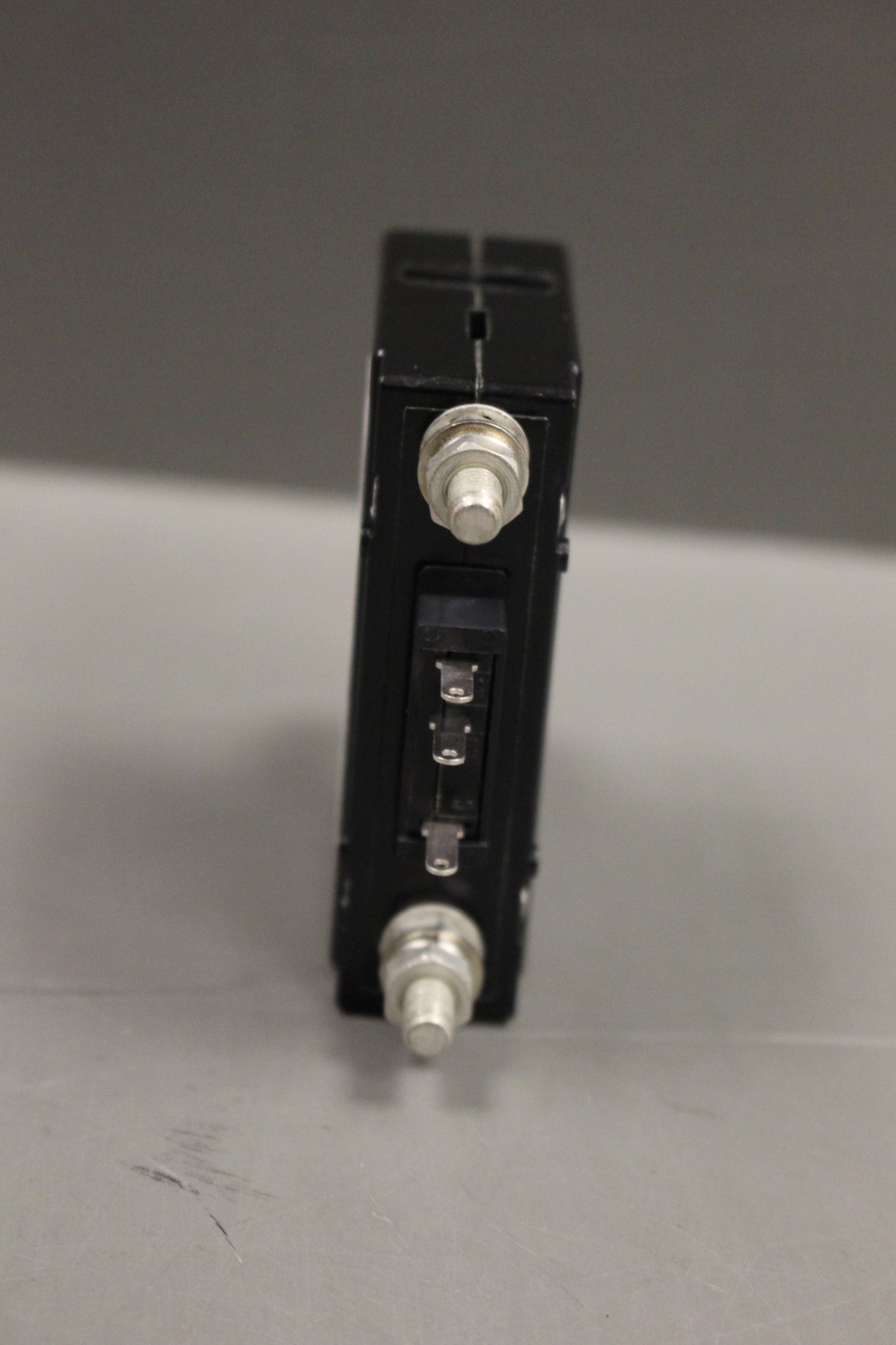

Switch Terminal Type: Tab, solder lug
Switch Current Rating And Type In Amps: 10.0 ac and 2.0 dc
Switch Voltage Rating And Type In Volts: 250.0 ac and 50.0 dc
Terminal Type And Quantity: 2 threaded stud
